Commercial Reverse Osmosis Systems

GOOD WATER WAREHOUSE, INC. can provide you with commercial & light industrial reverse osmosis systems for different applications. Our systems range from 150 gpd to 1 million gpd for tap, well, municipal and sea water applications. Full packages
with pre and post treatment are also available. For special applications or larger commercial units please contact GWW.

Compact I Unit
(ROS/COMP-_ _ _)

Compact I Spec Sheet

Compact I Manual

Standard Features:

• Thin film composite membrane

• Stainless steel membrane vessel

• Powder-coated steel frame

• Liquid-filled system pressure gauge

• Inlet/Outlet pre-filter gauges

• Fixed waste/recycle flow controls, stainless steel

• High-pressure nylon tubing

• High-pressure brass comp. fittings

• Storage tank pressure switch

• Feed water inlet solenoid valve

• Feed water low pressure switch

• 1/2 hp motor (150-450 gpd)

• 3/4 hp motor (800 gpd)

• 10” 5 micron sediment pre-filter (1)

• 10” carbon block pre-filters (2)

• 110 volt-50/60hz

Options:

• Nanofiltration membrane

• Super Hi-Flow membrane

• Float switch for atmospheric tank

• 220 volt-50/60hz

• Wall Mount Design

Reverse Osmosis Compact I Units
Description	Part #
150 - 200 GPD	ROS/COMP-150
250 - 400 GPD	ROS/COMP-250
450 - 600 GPD	ROS/COMP-450
800 - 900 GPD	ROS/COMP-800

Compact II Unit
(ROS/COMP-II-_ _ _)

Compact II Spec Sheet

Compact II Manual

Standard Features:

• Thin film composite membrane

• Stainless steel membrane vessel

• Powder-coated steel frame

• Liquid-filled system pressure gauge

• Liquid-filled Inlet/Outlet pre-filter gauges

• Pressurized tank pressure gauge

• Fixed waste/recycle flow controls, stainless steel

• High-pressure nylon tubing

• High-pressure brass comp. fittings

• Storage tank pressure switch

• Feed water inlet solenoid valve

• Feed water low pressure switch

• Rotary vane pump

• 1/2 hp motor (150-450 gpd)

• 3/4 hp motor (800 gpd)

• 20” 5 micron sediment pre-filter (1)

• 20” carbon block pre-filter (1)

• 110 volt-50/60hz

Options:

• Nanofiltration membrane

• Super Hi-Flow membrane

• Float switch for atmospheric tank

• TDS digital monitor

• Product and waste flow meters includes adjustable waste/recycle valves

• 220 volt-50/60hz

Reverse Osmosis Compact II Units
Description	Part #
150 - 200 GPD	ROS/COMP-II-150
250 - 400 GPD	ROS/COMP-II-250
450 - 600 GPD	ROS/COMP-II-450
800 - 900 GPD	ROS/COMP-II-800

Reverse Osmosis Compact II Units Options
Description	Part #
PROD/WASTE FM	ROS/COMPII-FLOWMTR
PANEL MOUNT TDS	ROS/COMPII-PMTDS
ADJ. WASTE/RECYCLE VALVE	ROS/COMPII-RECYCLE
REMOTE MOUNT TDS	ROS/COMPII-RMTDS

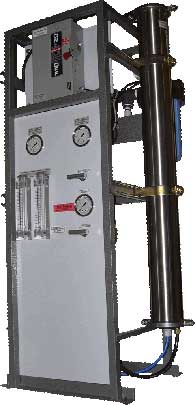

Frame Vertical Unit
(ROS/FMV-_)

Standard Features:

• Powder-coated steel frame

• Stainless steel multi-stage pump

• Reverse Osmosis membrane

• Stainless steel membrane vessel

• High-pressure nylon tubing

• Liquid-filled high pressure gauge

• Inlet/outlet pre-filter gauges

• Liquid-tight wire shrouding

• Feed water inlet solenoid valve

• Product/Waste fl ow meters

• 10” 5 micron BB pre-filter

• High-press. brass comp. fittings

• Up to 60% feed flow recovery rate

• S.S. adjstbl. Waste/Recycle needle valves

Options:

• Automatic hourly flush

• TDS digital monitor

• Hour meter

• Recycle flow meter

• Tank pressure switch (product)

• High pressure cut-off w/auto restart and manual override

• Pre-treat lock-out with light

• 50 hz electrical requirement

• 3 phase power supply

• Nanofiltration membrane

• Super Hi-Flow membrane

• Intelligent Control Processor (ICP)

Reverse Osmosis Frame Vertical Units
Description	Part #
1,500 - 1,800 GPD	ROS/FMV-1
3,000 - 3,600 GPD	ROS/FMV-2
4,500 - 5,400 GPD	ROS/FMV-3
6,000 - 7,200 GPD	ROS/FMV-4
7,500 - 9,000 GPD	ROS/FMV-5
9,000 - 10,800 GPD	ROS/FMV-6

Reverse Osmosis Frame Vertical Units Options
Description	Part #
RECYC. VAL. PRES. GAUGE - ECFMV	ROS/ECFM-PACKAGE
RECYC. FLOW METER - FM, WM, WHS	ROS/FM-RECYCLE
PRETREATMENT LOCKOUT - FMV	ROS/FMV PRELOCK

Frame Vertical Spec Sheet

Frame Vertical Manual

ICP - Intelligent Control Processor
Features:
LCD displaying all system operating functions. Keypad, Menu System, TDS Monitor with probe, Hour Meter, Temperature Display.

Frame Vertical Unit ICP
(ROS/FMV-_-ICP)

Standard Features:

• Powder-coated steel frame

• Stainless steel multi-stage pump

• Reverse Osmosis membrane

• Stainless steel membrane vessel

• High-pressure nylon tubing

• Liquid-filled high pressure gauge

• Inlet/outlet pre-filter gauges

• Liquid-tight wire shrouding

• Feed water inlet solenoid valve

• Product/Waste fl ow meters

• 10” 5 micron BB pre-filter

• High-press. brass comp. fittings

• Up to 60% feed flow recovery rate

• S.S. adjstbl. Waste/Recycle needle valves

• TDS digital monitor

• Hour meter

• Temperature display

Options:

• Automatic hourly flush

• Recycle flow meter

• Tank pressure switch (product)

• High pressure cut-off w/auto restart and manual override

• Pre-treat lock-out with light

• 50 hz electrical requirement

• 3 phase power supply

• Nanofiltration membrane

• Super Hi-Flow membrane

Reverse Osmosis Frame Vertical ICP Units
Description	Part #
2000 GPDICP; 120/60	ROS/FMV-1-ICP
3600 GPDICP; 120/60	ROS/FMV-2-ICP
5000 GPDICP; 120/60	ROS/FMV-3-ICP
6500 GPDICP; 120/60	ROS/FMV-4-ICP
8000 GPDICP; 120/60	ROS/FMV-5-ICP
10000 GPDICP; 120/60	ROS/FMV-6-ICP

Reverse Osmosis Frame Vertical ICP Unit Options
Description	Part #
AUTO FLUSH OPTION; ICP	ROS/ICP-AUTOFLUSH
FEED WATER TDS METER - ICP	ROS/ICP-FEEDTDS
HIGH PRESSURE CUT OFF - ICP	ROS/ICP-HIPRESCUTOFF
PERMEATE PURGE - ICP	ROS/ICP-PERMPURGE
PRE TREATMENT LOCK OUT - ICP	ROS/ICP-PRETREATLOCK
PRODUCT DIVERSION - ICP	ROS/ICP-PRODDIVERSION
WOODEN CRATE - FMV	ROS/FMV-H CRATE

Frame Vertical Spec Sheet

Frame Vertical Manual

Filtration Station
(ROS/FS-_-WS)

300 Gal Water Storage Tank

Standard Features:

• 1.5 cu.ft. twin tank water softener
w/auto backwash

• 1.5 cu.ft. carbon filter w/auto backwash

• 5 micron pre-filter

• Stainless steel multi-stage pump

• Thin Film Composite membrane

• Stainless steel membrane vessel

• Adjstbl. waste/recycle needle valves

• Product/waste flow meters

• 1 HP s. s. repressurization

• Two 20 GAC carbon block post-filters

• Pre and post-filter gauges

• System PSI gauge

• Stainless steel 24gpm ultraviolet water sterilizer

• Stainless steel pre-treatment jackets

• Marine-grade back panels

• Powder-coated steel frame w/casters

• Two 300 gallon water storage tanks w/adaptors

Options:

• Super Hi-Flow membrane

• Ozone generator (bubbler type)

• Feed water pump

• Back washing media pre-filter

• Gallon meter

• 50 hz electrical

• Shipping crate

Reverse Osmosis Filtration Stations
Description	Part #
1,500 - 1,800 GPD	ROS/FS-1-WS
3,000 - 3,600 GPD	ROS/FS-2-WS
4,500 - 5,400 GPD	ROS/FS-3-WS
6,000 - 7,200 GPD	ROS/FS-4-WS
